FINDING A REFERENCE DESIGNATOR - FAST AND FREE

To search for a reference designator inside your PCB CAM files (Gerber, ODB++, 2581) is a very common search requirement.

Perform these following steps with the PCB Preflight Free Viewer:

  1. Load any the Design with components in FAB3000 or PCB Preflight.
  2. Select the tab: Components
  3. Click inside the box Refdes:

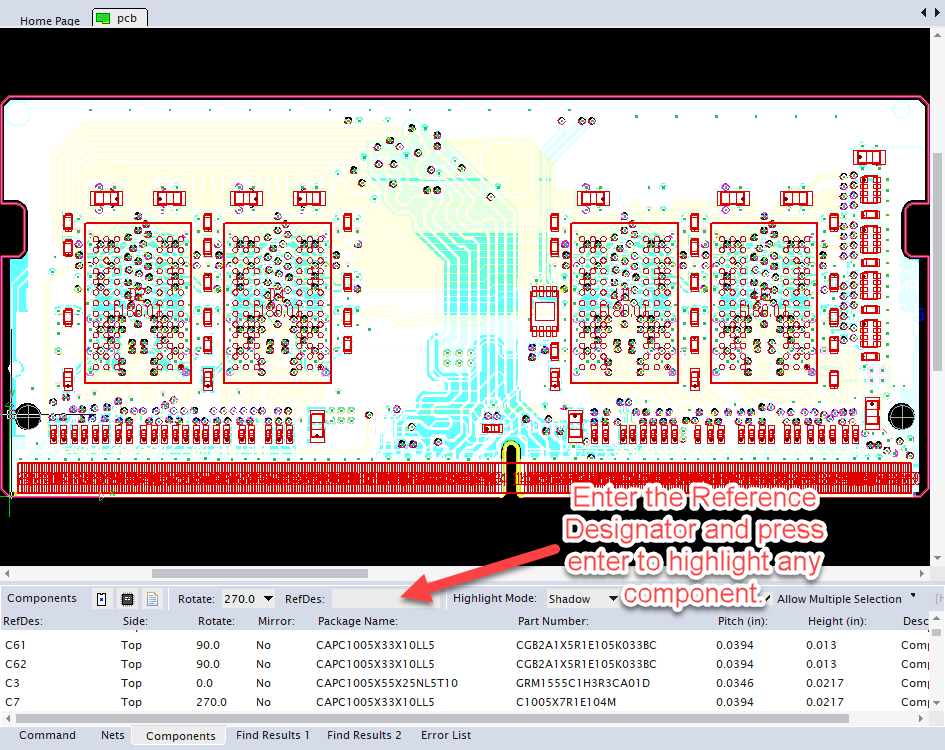

  4. Type any Reference designator and Press Enter to highlight any component.

PCB Preflight utilizes Numerical Innovation's 20+ years of software development in the PCB Manufacturing/Assembly markets and supersedes the popular DFM Now app (500k+ worldwide users). PCB Preflight is freely available for everyone!
